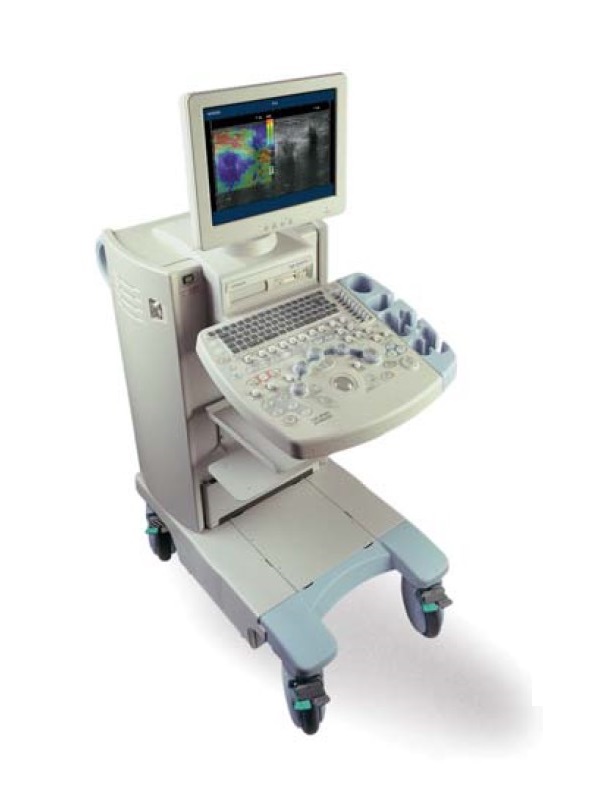

Hitachi EUB-7000HV – Diagnostic Ultrasound System

Hitachi EUB-7000HV is an all-round platform with versatility to suit mainstream applications and high-level modalities.

Request a Quote

SKU: 7000HV Categories: Colored, Ultrasounds, Used Tags: CHE, Dormed Hellas, Endoscopes, EUB-7000, Hi Vision, Hitachi, Pentax, RTE, Ultrasound, Ultrasound, Ultrasound, Ultrasound scanner, Urology

Description

Hitachi EUB-7000HV – Diagnostic Ultrasound System

Ultrasound EUB-7000HV – Image Gallery

Dormed Hellas 7000HV - Breast Prostate — Dormed Hellas 7000HV – Breast Prostate

Dormed Hellas 7000HV - Cardio M-mode — Dormed Hellas 7000HV – Cardio M-mode

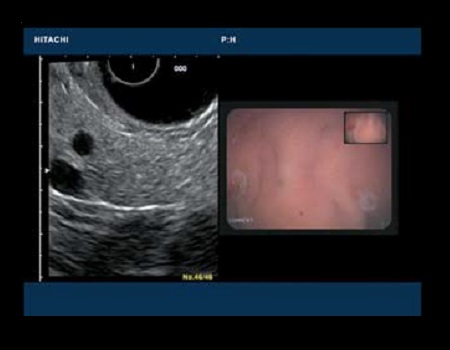

Dormed Hellas 7000HV - Endoscopic View — Dormed Hellas 7000HV – Endoscopic View

Dormed Hellas 7000HV - Gyn 3D Follicles — Dormed Hellas 7000HV – Gyn 3D Follicles

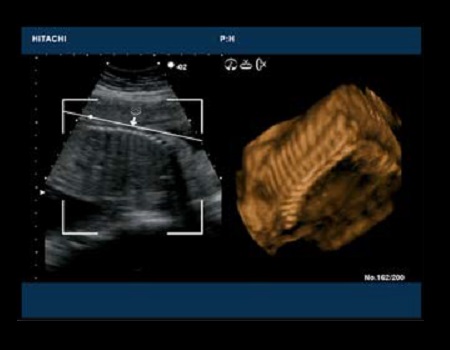

Dormed Hellas 7000HV - OB 4D Fetal — Dormed Hellas 7000HV – OB 4D Fetal

Dormed Hellas 7000HV - OB 4D Fetal2 — Dormed Hellas 7000HV – OB 4D Fetal2

Dormed Hellas 7000HV - Radial Electronic Endoscope — Dormed Hellas 7000HV – Radial Electronic Endoscope

Dormed Hellas 7000HV - Urology Prostate — Dormed Hellas 7000HV – Urology Prostate

Dormed Hellas 7000HV - Vascular IMT measurement — Dormed Hellas 7000HV – Vascular IMT measurement

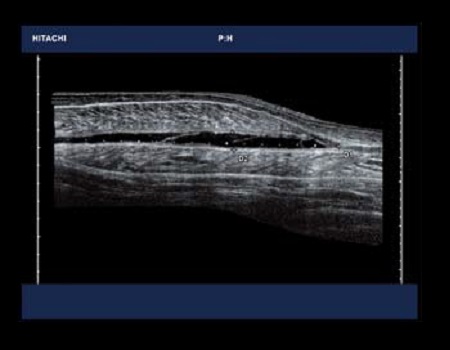

Dormed Hellas 7000HV - Wide View — Dormed Hellas 7000HV – Wide View

A Compact and Versatile Quality Platform

Hitachi Medical Systems presents the Hitachi EUB-7000HV, a versatile quality platform which delivers reliable clinical performance. This all-round system offers all mainstream applications and, through technology migration, can support premium modalities, such as the Hitachi Real-time Tissue Elastography (HI-RTE).

Advanced Product Features

The Hitachi EUB-7000HV is a reliable, compact, all-round platform which delivers high-quality images and a wealth of diagnostic information. It is designed for a wide range of clinical areas, including obstetrics, gynaecology, radiology, endoscopic ultrasound (EUS), urology, surgery, cardiology, vascular medicine, endocrinology, rheumatology and many other surgical and non-surgical applications.

HI Rez
High-Definition dynamic Tissue Harmonic Imaging (HdTHI)
Real-time Archiving
HI Zoom
Parallel-pro architecture
Hitachi’s new transducers

Advanced Modalities

Hitachi Real-time Tissue Elastography (HI-RTE)
Picture-in-Picture (PiP)
Let 4D imaging help you see and understand more
WideView Imaging
Cardiology Imaging
Real-Time Omnidirectional M-Mode (ODM)
Tissue-Doppler-Imaging (TDI)
Intima-Media Thickness Measurement (IMT)

Discover the unlimited possibilities of all-in-one Endoscopic Ultrasound (EUS) imaging

Over the years, Endoscopic Ultrasound (EUS) has become increasingly important. Modern endosonographic imaging is a minimally invasive technique, delivering high-resolution images and significantly contributing to therapeutic decisionmaking. Hitachi pioneered the development of diagnostic and interventional endoscopic ultrasound instruments and today offers a broad range of electronic radial, longitudinal and miniprobe endoscopic ultrasound transducers.

The latest technological developments in this field manifest in the new EBUS scope EB-1970 UK. It plays a vital role in the diagnosis and staging of mediastinal lymph nodes, using advanced fine-needle aspiration guidance and high-performance ‘chip in the tip’ endoscopic image generation for efficient and precise results.

Hitachi’s imaging technologies (including HI-RTE) and other breakthrough developments (such as HI Rez, HdTHI and state-of-the-art endoscopic image processing) are used in our range of endoscopic ultrasound instruments, to maximise diagnostic confidence.

Additional information

Weight	130 kg
Dimensions	50 × 80 × 140 cm
Brand	Hitachi
Condition	Used
Μedical specialty	Endocrinology, Gastroenterology, Neurosurgery, Orthopedic, Pathology, Pulmonology, Rheumatology, Surgery, Urology, Veterinary
Basic functions	Auto-optimizer, B steer, Compound, High definition dynamic Tissue Harmonic Imaging (HdTHI), High Resolution Imaging (HI REZ+), M mode, Oblique B-mode, RT Biplane, Tissue Harmonic Imaging (THI)
Colored	Color Flow Mode
Doppler	CW Color Doppler, Dual Gate Doppler, PW Color Doppler, Real-time Doppler Auto Trace
Obstetric functions	Fetal 3D/4D, Freehand 3D
Cardiac functions	ECG module, ODM (Omni Directional M-mode), Tissue Doppler Imaging (TDI)
Radiology functions	Contrast Harmonic Imaging (CHI), Elastography (RTE), IMT (Intima-media thickness) Measurement, Strain/Strain Ratio, WideView
Display technology	LCD Monitor
Image quality	High Definition
Screen dimensions	15
Connectivity	Analog Video Input/Output, DICOM, DVD External, Ethernet, USB 2.0, VGA
Printing	Ethernet Color Printer, Thermal B/W Printer, USB Color Printer
System Portability	Wheeled
Endoscopes	PENTAX EB-1970UK, PENTAX EG-3630U, PENTAX EG-3630UR, PENTAX EG-3670URK, PENTAX EG-3830UT, PENTAX EG-3870UTK, PENTAX FG-34UX, PENTAX FG-36UX, PENTAX FG-38UX
Probe ports	Electronic scanning probes: 3 active

Product Files

Hitachi EUB-7000HV

Compatible Probes

Convex
Hitachi EUP-C312T Abdominal Convex
Hitachi EUP-C314G Abdominal Convex
Hitachi EUP-C314T Abdominal Convex
Hitachi EUP-C318T Abdominal Convex
Hitachi EUP-C321T Abdominal Convex
Hitachi EUP-C324T Abdominal Convex
Hitachi EUP-C511 Abdominal Convex
Hitachi EUP-C514 Abdominal Convex
Hitachi EUP-C516 Abdominal Convex
Hitachi EUP-C715 Abdominal Convex
Hitachi EUP-C524 Abdominal Convex
Hitachi EUP-C532 Abdominal Convex
Hitachi EUP-B314 Biopsy Convex
Hitachi EUP-B512 Biopsy Convex
Hitachi EUP-B712 Biopsy Convex
Hitachi EUP-B514 Biopsy Convex
Hitachi EUP-B715 Biopsy Convex
Hitachi EUP-O732T Intraoperative Convex
Hitachi EUP-OL334 Laparoscopic Convex
Hitachi EUP-OL531 Laparoscopic Convex
Hitachi EUP-F531 Intraoperative Convex
Hitachi EUP-F334 Intraoperative Convex

Endocavity
Hitachi EUP-V33W Endocavity Vaginal
Hitachi EUP-V53W Endocavity Vaginal
Hitachi EUP-U531 Endocavity Vaginal

Linear
Hitachi EUP-L33 Vasular Linear
Hitachi EUP-L33ST Vasular Linear
Hitachi EUP-L34T Vasular Linear
Hitachi EUP-L52 Vasular Linear
Hitachi EUP-L53 Small Parts Linear
Hitachi EUP-L53s Vasular Linear
Hitachi EUP-L53L Breast Linear
Hitachi EUP-L54MA Breast Linear
Hitachi EUP-L65 Small Parts Linear
Hitachi EUP-L73s Vasular Linear
Hitachi EUP-L34T Intraoperative Linear
Hitachi EUP-O53T Intraoperative Linear
Hitachi EUP-O54J Intraoperative Linear
Hitachi EUP-O33J Intraoperative Linear
Hitachi EUP-B31 Biopsy Linear

Phased Aray
Hitachi EUP-S50 Cardiac Phased Aray
Hitachi EUP-S50A Cardiac Phased Aray
Hitachi EUP-S52 Pediatric Phased Aray
Hitachi EUP-ES52M Cardiac TEE
Hitachi EUP-ES322 Cardiac TEE
Hitachi EUP-ES533 Cardiac TEE

RT-3D (4D)
Hitachi EUP-CV524 Convex 3D/4D
Hitachi EUP-VV531 Vaginal 3D/4D

Bi-Plane
Hitachi EUP-CC331 Endocavity Bi-Plane
Hitachi EUP-CC531 Endocavity Bi-Plane
Hitachi EUP-U533 Endocavity Bi-Plane

Radial
Hitachi EUP-R54A-19 Endocavity Radial
Hitachi EUP-R54A-33 Endocavity Radial
Hitachi EUP-R54AW-19 Endocavity Radial
Hitachi EUP-R54AW-33 Endocavity Radial

Pentax
FG-34UX
FG-36UX
FG-38UX
EG-3630U
EG-3630UR
EG-3830UT
EG-3670URK
EG-3870UTK
EUP-TC3
