Mortara XScribe – Cardiac Stress Testing System

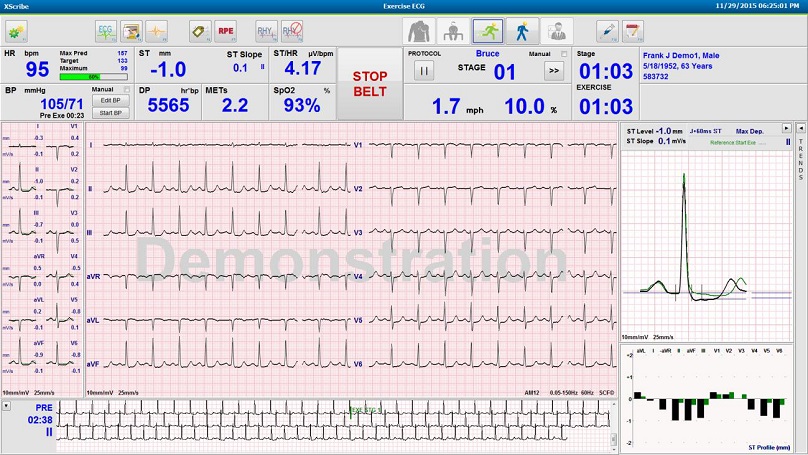

Mortara XScribe – Cardiac Stress Testing System through innovative technologies and a smart design, solves common challenges associated with the successful acquisition and interpretation of cardiac testing exams. A few of its most notable features include an impressive 24 inch touchscreen interface with protocol-driven, pre-defined selections; 12-lead ECG interpretation for adults, adolescents and children; standards-based HL7® and DICOM® bidirectional connectivity; and the unique WAM™ Wireless Acquisition Module that helps enhance both safety and patient comfort, and reduces obstacles for clinical personnel as they maneuver about the stress lab. Plus, VERITAS® technology offers exceptional accuracy in real-time ST-segment monitoring, arrhythmia detection and resting ECG interpretation—delivering critical data through each stage of the stress test. With a legacy of excellence, the Cardiac Stress Testing System Software delivers all of this and more in a smart, user- and patient-focused solution.

Mortara XScribe Features

• Examine historical ECG data throughout the exam with real-time full disclosure
• Source Consistency Filter designed to remove noise and maintain ECG integrity
• Choose between WAM wireless acquisition module or the AM12 acquisition module
• Optional wireless data acquisition increases work space flexibility
• Label, store, print & review events on the fly and include them in final report

The XScribe Cardiac Stress Testing System supports several treadmills, the recommended treadmill is – TMX428

Mortara XScribe at WelchAllyn Official WebSite

WAM wireless acquisition module

The unique WAM™ Wireless Acquisition Module benefits both patients and clinicians.

Equivalent in size and weight to a conventional wired patient cable, the Wireless Acquisition Module provides freedom of movement for the clinician while acquiring electrocardiograms and during cardiac stress testing. With the Wireless Acquisition Module, the electrocardiograph no longer needs to be right at the patient’s bedside; this is particularly advantageous in critical situations or when the patient is in isolation.

• Dedicated, secure communication links the module to a single ECG/cardiac stress testing system
• Full diagnostic-quality ECG with a high-fidelity acquisition sampling rate of 40,000 samples per second per channel—a benefit for accurate pacemaker detection
• Elimination of the cable reduces a source of artifact, resulting in high-quality ECG tracings
• On/off, 12-lead ECG acquisition and rhythm printing at the bedside with the simple press of a button

Product Files

Mortara XScribe – Declaration of Conformity

Mortara XScribe – User Manual EN

Mortara XScribe – Quick Reference Guide EN

Mortara XScribe – Specifications EN

Mortara XScribe – Cardiac Stress Testing Specification Sheet
