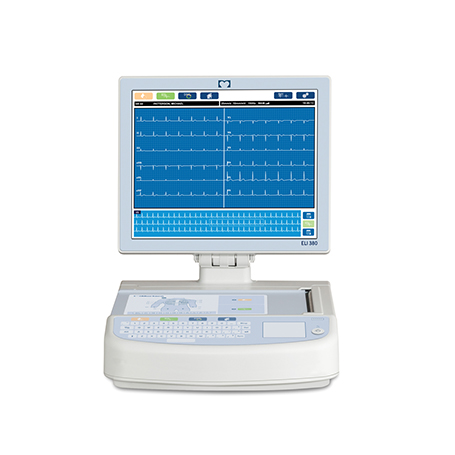

Mortara ELI 380 – Resting Electrocardiograph

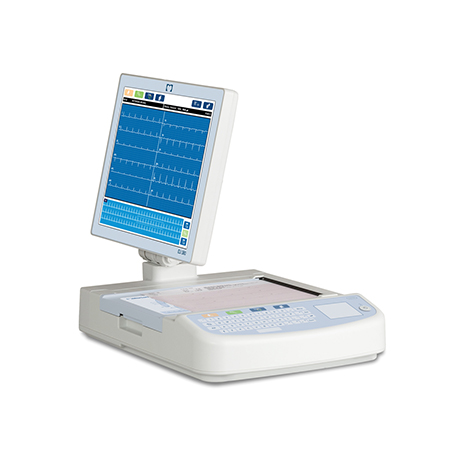

The ELI 380 Resting ECG, with ERGO swivel and touchscreen display, is designed to make the total ECG experience more efficient — from decreasing the time required to perform the procedure, to increasing the accuracy and security of the data acquired, to the overall patient care experience. With a 180° swivel and 120° tilt capability (fixed display options available), ERGO moves with you so exams can be performed without leaving the patient’s side. The capacitive touchscreen makes navigation easy from any angle, and being calibration-free with a chemically strengthened glass surface, it’s a solution that was built to last. Additionally, automation is built into demographic entry and patient selection through download of orders or ADT, combined with use of a barcode scanner to select the right patient. And by eliminating a traditional keyboard, which has nooks and crannies in which bacteria can reside, you can promote a cleaner, safer environment for your patients and your staff.

Mortara ELI 380 – Resting Electrocardiograph Features

• Streamlined barcode workflow eliminates steps and reduces manual entry
• Follows ACC, AHA and HRS recommendations for baseline filtering (0.05 Hz)
• SECUR-it feature promotes safeguarding of patient health information (PHI)
• Glass surfaces on capacitive touch keyboard and ERGO display simplify cleaning
• Exceed ACC, AHA and HRS upper frequency cutoff (300 Hz) for adults and children
• Mortara Critical Test Results help quickly identify high-risk patients
• Captures the best 10 seconds of ECG data from memory, reducing need for repeat ECGs
• Supports pacemaker spike detection with 40,000 sps / channel data capture
• You can choose between WAM wireless acquisition module or the AM12 acquisition module
• 12-Lead Multi Channel Electrocardiograph (banana or clips)
• Perforated Z-fold thermal paper, A4 or 8.5 x 11″ wide, 250 sheets

Mortara ELI 380 – Resting ECG at WelchAllyn Official WebSite

Προτεινόμενο Τροχήλατο Τραπέζι Πολλαπλών χρήσεων

WAM wireless acquisition module

The unique WAM™ Wireless Acquisition Module benefits both patients and clinicians.

Equivalent in size and weight to a conventional wired patient cable, the Wireless Acquisition Module provides freedom of movement for the clinician while acquiring electrocardiograms and during cardiac stress testing. With the Wireless Acquisition Module, the electrocardiograph no longer needs to be right at the patient’s bedside; this is particularly advantageous in critical situations or when the patient is in isolation.

• Dedicated, secure communication links the module to a single ECG/cardiac stress testing system
• Full diagnostic-quality ECG with a high-fidelity acquisition sampling rate of 40,000 samples per second per channel—a benefit for accurate pacemaker detection
• Elimination of the cable reduces a source of artifact, resulting in high-quality ECG tracings
• On/off, 12-lead ECG acquisition and rhythm printing at the bedside with the simple press of a button
